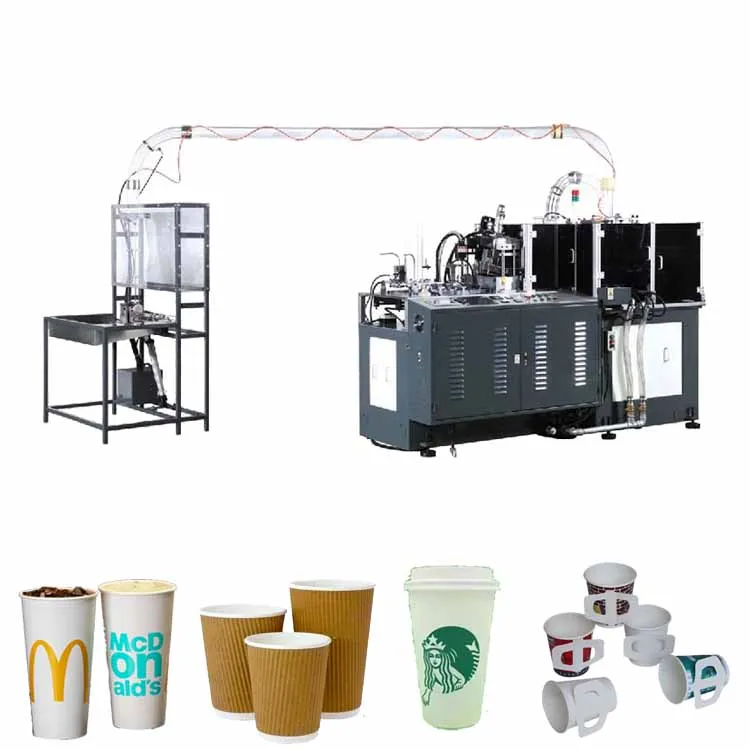

120 Pcs/Min Paper Cup Production Line Paper Cup Making Machine
Product Description
Description of Disposable Coffee Paper Carton Cup Making Machine Make Cups Paper
The working principle of the paper cup machine is that a main motor drives the whole machine to realize the perfect integration of gear and cam structure.Now the machine uses a single aluminum disk instead of the previous three-disk machine, greatly reducing the failure rate of the machine and reducing the training time for the operators.A 3-16oz odd-even shower film paper cup can be made according to customer request.Is a automatic paper cup molding equipment, through rows of automatic paper, paper device (ensure accurate positioning), ultrasonic or copper welding, mechanical paper transfer, oil injection, bottom, folding, preheating, rolling, cup, unloading continuous process, can stabilize the production of different specifications of paper cup, is our company after comprehensive technical improvement to
improve the stability of the paper cup equipment.
Specification
Parameters of 2-16Oz Tea Cup Coffee Cup Machine To Make Disposable Paper Cup
|
Model
|
YG-90
|
|
Speed
|
100-120 pcs/min
|
|
Cup size
|
Top Diameter: 60mm(min)-125mm(max)
Bottom Diameter: 45mm(min)-100mm(max)
Height: 60mm(min)-170mm(max)
|
|
Raw material
|
135-450 GRAM
|
|
Configuration
|
ULTRASONIC & HOT AIR SYSTEM
|
|
Output
|
12KW,380V/220V,60HZ/50HZ
|
|
Air compressor
|
0.4 M³/Min 0.5MPA
|
|
Net weight
|
3.4 TONS
|
|
Dimension of machine
|
2500×1800 ×1700 MM
|
|
Dimension of cup collector
|
900 ×900 ×1760 MM
|

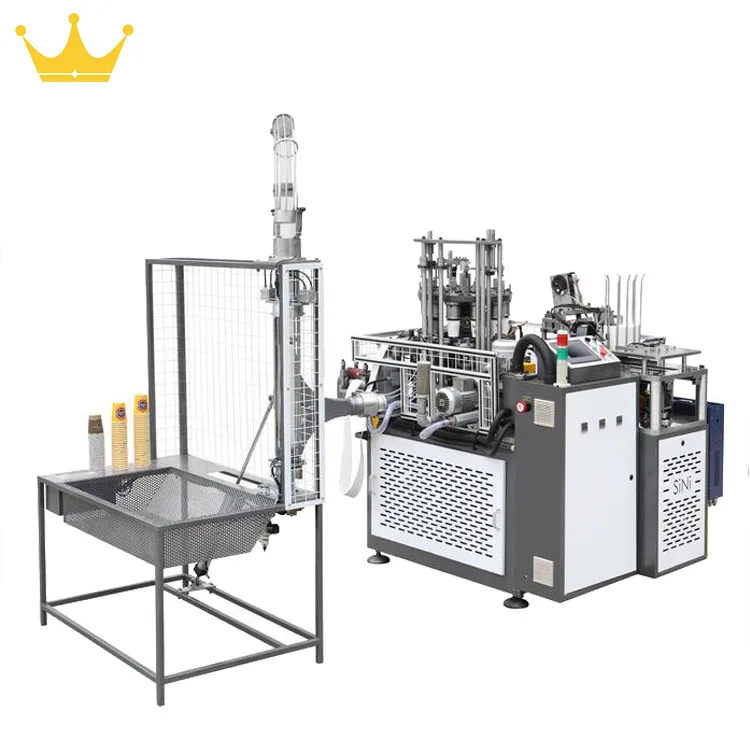

Product Show
Machine Show of Ultrasonic Double Coated Coffee Tea Water Paper Cup Machine Making
Highlights of paper cup making machine
Open cylindrical cam
Two cam systems, this design more costly, but can let the top curling and bottom knurling more accuracy, stable and low noise. Cam adpots high strength Japan-SKD11 with quenching treatment,resistant to wear.
Gear drive
This system ensure the machine runs with high speed with low noise, smoothly running and high precision. Instead of chain drive.
Hot air system and protect system
2 set of hot air systems can decrease the rate of leakage. Our factory using the whole set of Leister(Banko) hot air system with protection system. And our system sets up on the fixed plate, do not moving during production. Almost impossible to damage. Also the only one have the protect system that hot parts will go down, keep the distance with paper cup and cup mould when the machine stop.
Inspection system
Unique design. Our factory set up on final turn station,more stable than set up on flying tube. Do not need to buy extra inspection machine, less factory space needed. Inspection accuracy can be set up by self.
Oil lubrication system
Adoptes forced lubrication system to ensure main driving oil supply regularly and reduce friction and prolong the machine life. The oil circuit adds a clear the oil and filtering system to clean the oil automaticly. Our factory is the first one to using double layer plate to avoid the scraps of paper into the machine’s inside.
PLC control system
controlled by simple and efficient PLC system

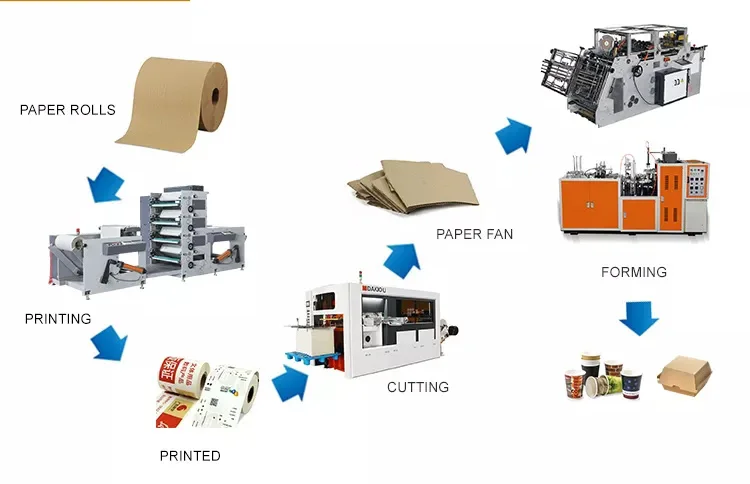

Production line details
The Whole Line of 70-90 Pcs/Min 3-16Oz China Paper Cup Making Machine
