Product Description
R330W is the secure electronic payment terminal powered by safe-Android 7.1.2 operation system. It comes with a 5.0 inch high definition colorful display, industrial level thermal printer.
R330W Introduction R330W is a portable and multi-functional Android mobile POS along with MTK A7 Quad-Core CPU + Android 7.1.2 version + 1GB RAM, 8GB Flash Printer: 1. Paper width: 58mm, 40mm paper roll 2. Support receipt printing, web printing 3. Support pattern, multi-language printing Application: mobile ordering, e-voucher redeem, queuing, receipt printing, delivery service, top-up, etc. Service: 1. Support OEM/ODM 2. Support free SDK to develop software 3. Samples in stock, fast shipment after payment succeeded
Product Paramenters
|
CPU
|
MTK A7 Quad-Core 1.3GHz
|
|
OS
|
Android 7.1.2 / Senraise OS
|
|
Memory
|
1GB RAM, 8GB Flash ( 2+16) optional
|
|
Display
|

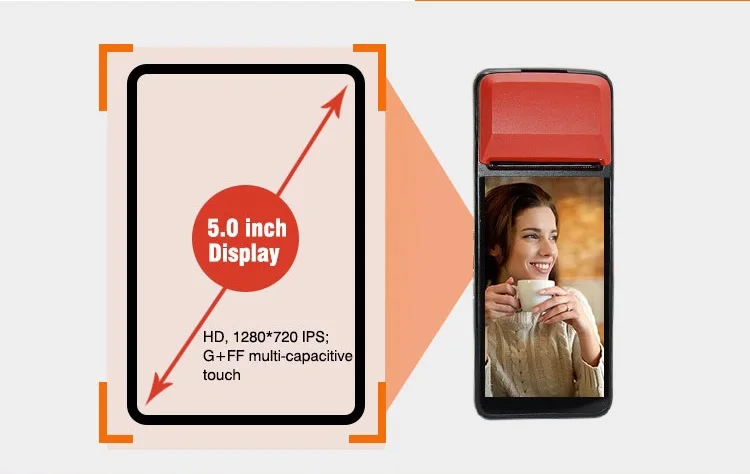

5.0”HD,1280*720 IPS, G+FF multi-capacitive Touch
|
|
Key Pad
|
Power on / off, Volume up / scanner
|
|
Speaker
|
8 W, ≥ 95dB, audio interface, mono, high volume design
|
|
Data connect
|
WIFI: 2.4GHz, supporting IEEE 802.11 B / g / n
|
|
Bluetooth: BT 2.1 / 3.0 / 4.0, ble
|
|
|
GPS/A-GPS
|
Build in GPS, support A-GPS
|
|
Thermal Printer
|
58mm, 40mm Roll, 70mm/s, print duration≥50km
Low noise, Power saving, 3K receipts supported |
|
Camera
|

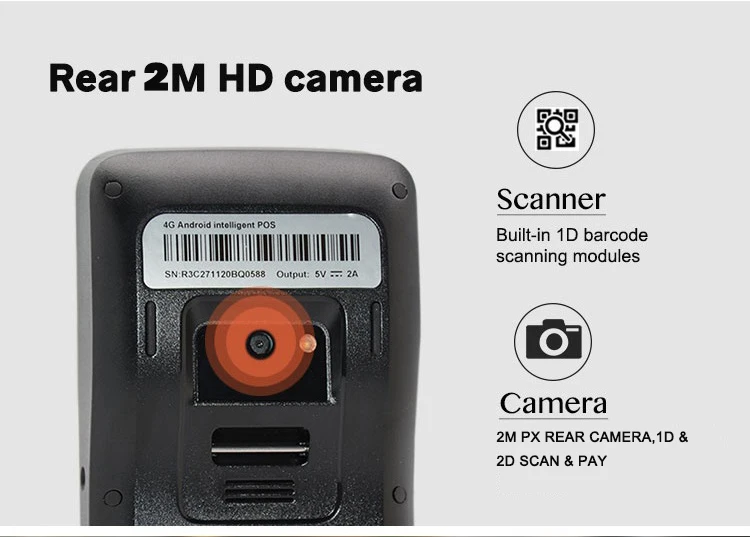

2M px rear camera,1D & 2D scan & pay
|
|
Scanner
|
Build in 1D /2D, 1D/2D Barcode printing; Online upgrade
|
|
Antenna
|
WIFI + Bluetooth+GPS
|
|
Interface
|
1*micro USB Interface,Support USB charging and OTG
|
|
Earphone-Jack
|
3.5mm, Support external RFID identification
|
|
Anti-drop
|
1.2 meter
|
|
Environment
|
Normal Operating Temp: 0-40℃
|
|
Storage Temp: -20℃-60℃
|
|
|
Battery
|

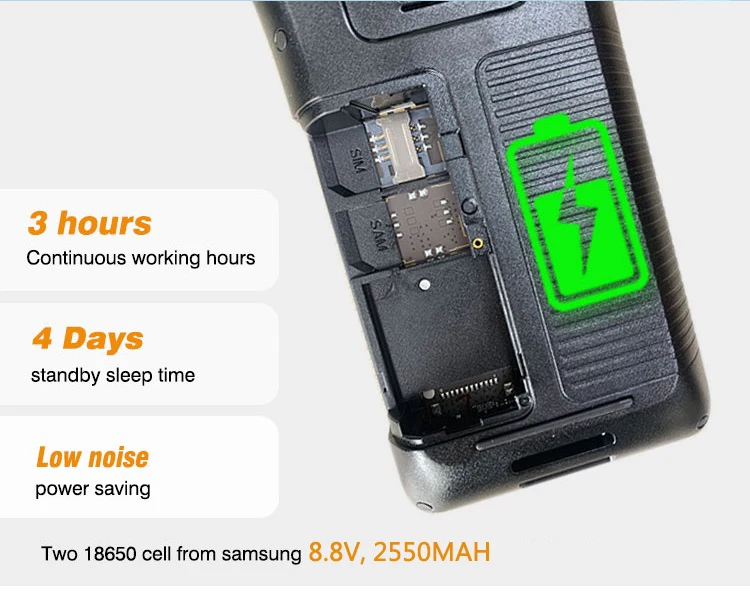

8.8V, 2550mAh,2 Samsung 18650(overcharge protection, over-discharge protection)
|
|
Adapter
|
Input: AC: 100-240V, Output: 5V,2A
|
|
Data line
|
Micro USB, 0.8m exposed, passed CCC, CE
|
|
Power life
|
Stand by 250+ hours working hour 16+ (Display on and wireless connected)
|
|
Weight Packing
|
Color box size：200mm*83mm*62mm,0.58kg, 10 pcs Cartoon Box Size: 340mm*195mm*225mm,6.2kg
|
|
Accessories
|
Micro USB cable*1, screwdriver *1, power adapter *1
|
|
Warranty
|
12 Month
|
Production Flow
